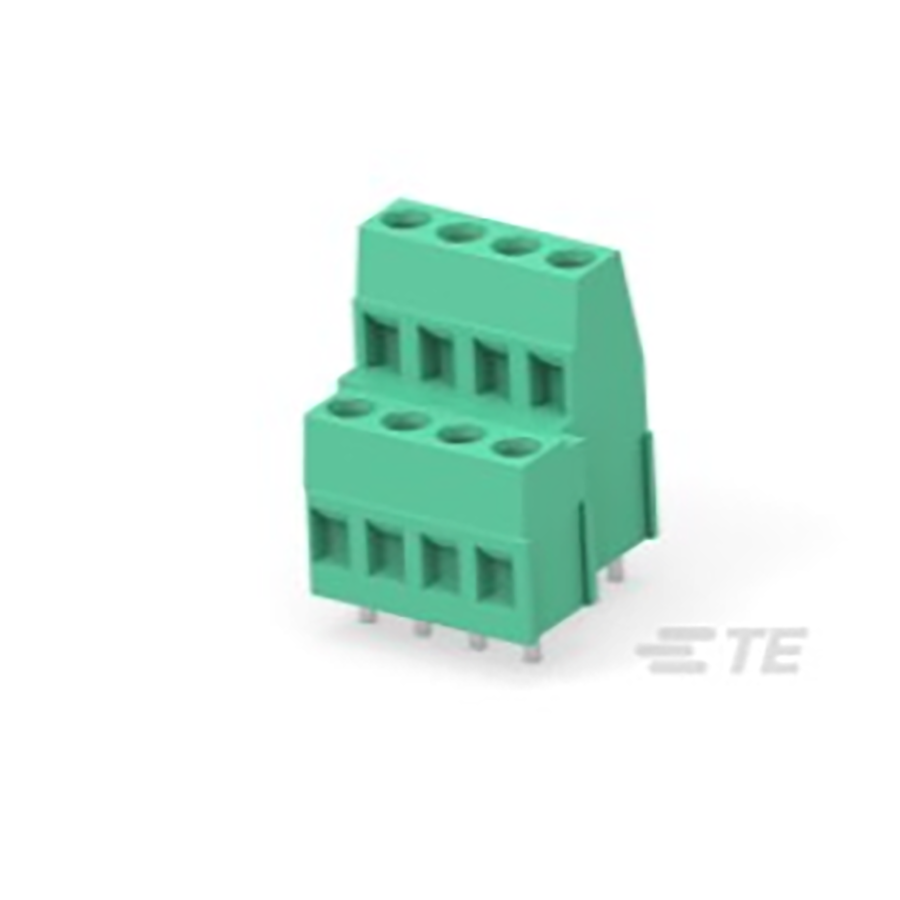

796692-4
Manufacturer:
TE Connectivity
Mfr.Part #:
796692-4
Datasheet:
Description:
Terminal Blocks Through Hole 4 5.08 mm 17.5 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Voltage Rating (AC) | 300 V |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 17.5 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 8 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Thread Size | M3 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 4 |
| Number of Levels | 2 |
| Connector System | Wire-to-Board |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Green |
| Plating | Brass, Tin |
| Tail Length | 3.81 mm |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 189
Distributors
pcbx
pcbxUnit Price$5.41940
Ext.Price$5.41940
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.41940 | $5.41940 |
| 10 | $3.84890 | $38.48900 |
| 25 | $3.39834 | $84.95850 |
| 50 | $3.12904 | $156.45200 |
| 100 | $3.04184 | $304.18400 |
| 300 | $2.88323 | $864.96900 |
| 500 | $2.73289 | $1366.44500 |
| 1000 | $2.59044 | $2590.44000 |
